Technical Specifications
BARRICADE TAPE –Series
Material thickness: Nominal 4 MIL
I. SPECIFICATIONS:

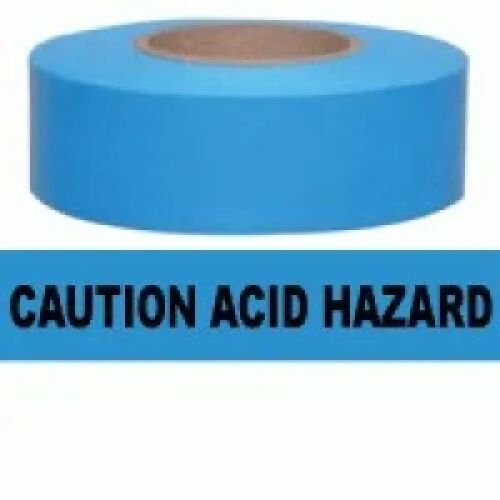

Barricade warning tapes will consist of high visibility safety polyethylene with bold black letters or solid color. Standard letter height is two inches (2"). Tapes help prevent accidents by increasing visibility of hazards and can be tied, stapled or nailed in place.
- Melt Index (condition 190/2.6): SI Units: 1.0 g/10 min, Customary Units:1.0 g/10 min. Method, ASTM: D1238
- Density: SI Units: 917 kg/m3, Customary Units: 0.917 g/cc, Method, ASTM: D4883
Film Properties 1.0 Mil (0.025mm)
- Haze: SI Units: 20%, Customary Units: 20%, Method, ASTM: D1003
- Gloss (Gardner Rating @ 45?): SI Units: 40, Customary Units: 40, Method, ASTM: D2457
- Dart Impact: SI Units: 200 g, Customary Units: 200 g, Method, ASTM: D1709A
- Seal Initiation Temp.: SI Units: 99°C, Customary Units: 210°F, Method, ASTM: Eastman
- Elmendorf Tear Resistance: MD= SI Units: 400 g, Customary Units: 400 g, Method, ASTM: D1922
- Elmendorf Tear Resistance: TD= SI Units: 600 g, Customary Units: 600 g, Method, ASTM: D1922
- Tensile Strength @ Break: MD= SI Units: 49 MPa, Customary Units: 7,000 psi, Method, ASTM: D882
- Tensile Strength @ Break: TD= SI Units: 35 MPa, Customary Units: 5,000 psi, Method, ASTM: D882
- Tensile Strength @ Yield: MD= SI Units: 10 MPa, Customary Units: 1,450 psi, Method, ASTM: D882
- Tensile Strength @ Yield: TD= SI Units: 9.7 MPa, Customary Units: 1,400 psi, Method, ASTM: D882
- Elongation @ Break: MD= SI Units: 650 %, Customary Units: 650 %, Method, ASTM: D882
- Elongation @ Break: TD= SI Units: 850 %, Customary Units: 850 %, Method, ASTM: D882
- Tensile Modulus, 1% Secant: MD= SI Units: 208 MPa, Customary Units: 30,000 psi, Method, ASTM: D882
- Tensile Modulus, 1% Secant: TD= SI Units: 222 MPa, Customary Units: 32,000 psi, Method, ASTM: D882
Blown Film Preparation & Conditions: Extrusion conditions used to produce film include a 2.4:1 blow-up ratio and 8.0 lb/hr/inch die output. Unless otherwise noted, all tests are run at 23°C (73°F) and 50% R.H. Density results are on Base Resin.
