-Meets OSHA 1910.144 for marking physical hazards.
-Comes standard 3" x 1,000 ft.
-Also available in 200 ft., 300 ft., and 500 ft.
-Other widths available.
-Comes in a variety of mil thicknesses. 2 mils, 3, mils, or 4 mils.

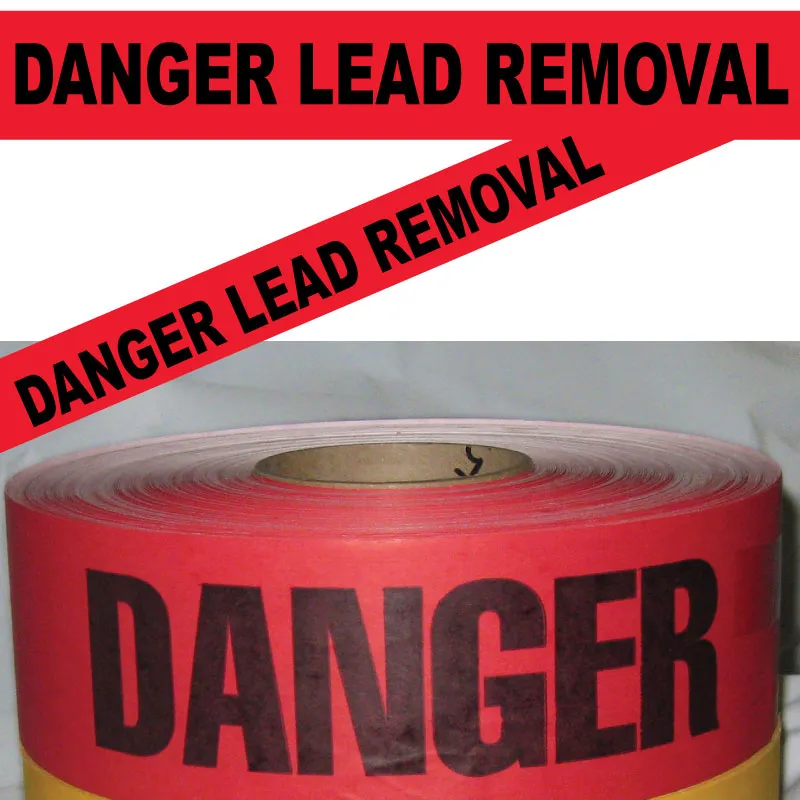

-Danger tapes come with Red background.
-Letter height is 2 inches.
- RED Polyethylene tape.
Technical Specifications
BARRICADE TAPE -Series
Material thickness: Nominal 2 MIL
I. SPECIFICATIONS:
Barricade warning tapes will consist of high visibility safety yellow or red polyethylene with bold black letters. Standard letter height is two inches (2"). Tapes help prevent accidents by increasing visibility of hazards and can be tied, stapled or nailed in place.
- Melt Index (condition 190/2.6): SI Units: 1.0 g/10 min, Customary Units:1.0 g/10 min. Method, ASTM: D1238
- Density: SI Units: 917 kg/m3, Customary Units: 0.917 g/cc, Method, ASTM: D4883
Film Properties 1.0 Mil (0.025mm)
- Haze: SI Units: 20%, Customary Units: 20%, Method, ASTM: D1003
- Gloss (Gardner Rating @ 45?): SI Units: 40, Customary Units: 40, Method, ASTM: D2457
- Dart Impact: SI Units: 200 g, Customary Units: 200 g, Method, ASTM: D1709A
- Seal Initiation Temp.: SI Units: 99°C, Customary Units: 210°F, Method, ASTM: Eastman
- Elmendorf Tear Resistance: MD= SI Units: 400 g, Customary Units: 400 g, Method, ASTM: D1922
- Elmendorf Tear Resistance: TD= SI Units: 600 g, Customary Units: 600 g, Method, ASTM: D1922
- Tensile Strength @ Break: MD= SI Units: 49 MPa, Customary Units: 7,000 psi, Method, ASTM: D882
- Tensile Strength @ Break: TD= SI Units: 35 MPa, Customary Units: 5,000 psi, Method, ASTM: D882
- Tensile Strength @ Yield: MD= SI Units: 10 MPa, Customary Units: 1,450 psi, Method, ASTM: D882
- Tensile Strength @ Yield: TD= SI Units: 9.7 MPa, Customary Units: 1,400 psi, Method, ASTM: D882
- Elongation @ Break: MD= SI Units: 650 %, Customary Units: 650 %, Method, ASTM: D882
- Elongation @ Break: TD= SI Units: 850 %, Customary Units: 850 %, Method, ASTM: D882
- Tensile Modulus, 1% Secant: MD= SI Units: 208 MPa, Customary Units: 30,000 psi, Method, ASTM: D882
- Tensile Modulus, 1% Secant: TD= SI Units: 222 MPa, Customary Units: 32,000 psi, Method, ASTM: D882
Blown Film Preparation & Conditions: Extrusion conditions used to produce film include a 2.4:1 blow-up ratio and 8.0 lb/hr/inch die output. Unless otherwise noted, all tests are run at 23°C (73°F) and 50% R.H. Density results are on Base Resin.
Technical Specifications
BARRICADE TAPE Series
Material thickness: 3 MIL
I. SPECIFICATIONS:
Barricade warning tapes will consist of high visibility safety yellow or red polyethylene with bold black letters. Standard letter height is two inches (2"). Tapes help prevent accidents by increasing visibility of hazards and can be tied, stapled or nailed in place.
II. TEST DATA:
Material Identification: Nominal 3 Mil Polyethylene, 3" & 6" wide
Test Procedure: ASTM-D-882, Method A
Specimen Conditions: 73?F / 50% R.H.
Test Temperature: 73?F
Elongation: 465%
Tensile Strength (Transverse): 1750 psi
Tensile Strength (Longitudinal): 2425 psi
Roll Weight (3" x 1000') 3.25 lbs.
Technical Specifications
BARRICADE TAPE -Series
Material thickness: 4 MIL
I. SPECIFICATIONS:
Barricade warning tapes will consist of high visibility safety yellow or red polyethylene with bold black letters. Standard letter height is two inches (2"). Tapes help prevent accidents by increasing visibility of hazards and can be tied, stapled or nailed in place.
II. TEST DATA:
- Material Identification: Nominal 4 Mil Polyethylene, 3" & 6" wide
- Test Procedure: ASTM-D-882, Method A
- Specimen Conditions: 73?F / 50% R.H.
- Test Temperature: 73?F
- Elongation: 552%
- Tensile Strength (Transverse): 2,100 psi
- Tensile Strength (Longitudinal): 2,870 psi
- Roll Weight (3" x 1000') 4.5 lbs.
